PROCESSING AREAS


  • 2490 X x 1260 Y x 110 Z mm


4kW SPINDLE



400 W BRUSHLESS AC SERVO MOTORS and DRIVERS (ALL AXIS)



BALLSCREW DRIVE (ALL AXIS)


Tekcel CNC Routers are all equipped with ballscrew drive systems on all axes, ensuring 0 backlash, repeatability and long life. Driving the ballscrew are brushless AC Servo motors – precise, powerful and maintenance free. A Dual Drive gantry on the X axes allows meticulous squaring of our bespoke Tekcel CNC routing machine. Linear rail and linear guideway bearings ensure smooth, precise motion on all axes. These components combine to enable Tekcel routers to produce precision parts year in and year out.

DUAL DRIVE GANTRY (X AXIS)



TOOL LENGTH SENSOR


The Tool Length Sensor is standard on all new Tekcel CNC Routing machines. It is located on the front right hand corner of the machine tabletop. This wireless tool length sensor sets the length of the tool bit when a tool is placed in the spindle. The tool length sensor provides easy calibration of tool height offset. This option can be retrofitted to some past models of Tekcel CNC routers.

POP-UP TOOL RACK WITH 10 TOOL CAPACITY


Tekcel CNC Routers are fitted with automatic pop up tool racks as standard. Depending on the width of the machine, the tool racks can hold 10, 12, 16 or 18 toolholders with tools. The tool rack manager in the machine controller allows you to specify up to 100 tools and allows you to allocate any of these tools to a specific seat in the tool rack. The operator can easily configure the machine for the job at hand using the tool rack manager settings. Complex jobs can be completed by the machine without the need of human intervention, promoting a safe working environment allowing the operator to attend to additional tasks. This option can be retrofitted to some older models of Tekcel machines.

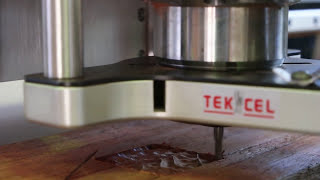

VACUUM DUST FOOT


A Vacuum Dust Foot is a standard component on all new Tekcel Routers. The dust foot is fitted to the Z Axis of the machine and encloses the tool during operation. The dust foot includes a metal tube guideway to attach the vacuum extraction hose to ensuring a safe, clean work area. The base of the dust foot is fitted with an UHMWPE skid plate to avoid scratching the material that is being cut.

3 x ER32 COLLETS, 3 x ISO30 TOOL HOLDER AND SPANNER



EASY ACCESS LUBRICATION POINTS


Standard on Tekcel CNC Routing machines, all ballnuts and bearing blocks on the machine are connected to remote lubrication points so that components requiring lubrication can be accessed easily with removing machine covers. This greatly simplifies the regular maintenance of the machine.

TOMMOTEK Gen III CONTROLLER WITH GRAPHICAL USER INTERFACES


The Gen III Controller with Graphical User Interface is the brain of Tekcel CNC Router. A massive amount of technology supporting the smooth operation of your bespoke CNC router is at the touch of your fingertips. The intuitive layout guides the operator through the job setup, machine setup, and running of the job. A novice can feel comfortable running the machine very quickly, and a seasoned expert will have all the power at their fingertips. The Gen III controller with Touch Screen Graphical User Interface can be retrofitted to all Tekcel machines.


OptiCAM (REGISTRATION CAMERA)


The Tekcel OptiCAM digital camera registration system locates registration marks in artwork generated by varied source files such as .ai, .cdl, .cdr and many more, to cut paths around images. OptiCAM’s software program automatically re-calibrates the cut path to compensate for any misalignment in the loading, stretching or rotaion that may have occurred during the printing or, in the case of roll-fed printers, the lamination process. Given the growing number of companies that are now printing directly to rigid sheet materials – from foamboard and aluminium composite to more substantial substrates like acrylic and MDF, OptiCAM can be fitted to new machines and retrofitted to many existing Tekcel Routers.

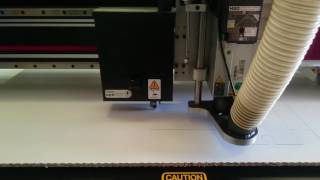

OptiCUT (RECIPROCATING KNIFE)


The Tekcel OptiCUT is a knife cutting system originally designed to be paired with the Tekcel OptiCAM to create a Print Finishing solution for Tekcel router users. It was soon proved that OptiCUT was a very versatile tool. From cutting window film to gasket and insulation material the Tekcel OptiCUT systems can handle cutting many varied substrates. Contact us to find out which OptiCUT System will best suit your requirements. OptiCUT can be fitted to new machines and retrofitted to many existing Tekcel Routers.

COOLANT ATOMISER



Tekcel manufactures two coolant atomisers that can that can be installed on your Tekcel CNC Routing machine.
The first is our long-standing coolant atomizer, fitted to the Z Axis of the machine, delivering targeted mist coolant to the cutting tool and material through dual adjustable gooseneck hoses.
Our recently introduced high pressure coolant atomiser was designed as a solution for Tekcel CNC Routers primarily cutting metal. The mist coolant is targeted to the cutting area with four gooseneck hoses that are fixed to a custom dust foot for precision delivery. This also allows the processing of multi tool jobs without the need to readjust the orientation of the gooseneck delivery hoses. The coolant is stored in a reservoir fixed to the front left leg of the machine for easy access. Contact us to find out which Coolant Mist System will be best suited for your application. A Tekcel Coolant Atomiser can be retrofitted to many existing Tekcel Routers.

T-SLOT TABLETOP


Tekcel CNC Routing machines can be provided with a T-Slot Table Top. Many engineering applications require the addition of jigs and fixtures or simply require the material being cut to be clamped to the table. A starter set of clamps is provided with this option.

VACUUM HOLD DOWN TABLETOP


Our Tekcel CNC Routing machines come standard with a vacuum hold down tabletop which sits on precision aluminium extruded slats equipped with T-Slot channels. The vacuum table top allows material to be quickly loaded and secured to the table top with the suction of the vacuum pump. Upon completion of the job, the material is easily unloaded when the vacuum pump is turned off. The operator is able to achieve targeted vacuum hold down by opening or closing valves in the manifold to suit the job at hand.

VACUUM HOLD DOWN PUMP


Tekcel can provide one or two 7.5 kW Side Channel Blowers with a Tekcel CNC Router. These vacuum hold down pumps work in conjunction with our standard vacuum hold down tabletop, manifold and valve system. Vacuum hold down pumps are electrically wired into the Tekcel CNC machine to automatically start and stop with each job. Our Teckel technical sales representatives can advise which system is best for your application

TEKCEL DUST EXTRACTOR


A Tekcel Dust Extractor with its high suction pressure, micro pore filter and high volume flow rate ensures a clean, safe work environment. An articulated swing arm avoids problems with collapsing, clogging, static build-up and wear of plastic hose. A 550 gsm calendared micro pore filter, filters fine dust particles for a clean, healthy working environment. A metal drum on the base of the Tekcel Dust Extractor collects swarf, dust and debris and requires routine emptying. A Tekcel Dust Extractor can be retrofitted to many existing Tekcel Routers.

PROFILELAB 2D


ProfileLab 2-D Software has been offered as standard with Tekcel CNC routing machines for more than 20 years. ProfileLab is produced and developed by CADlink Corporation in Canada. Our longstanding relationship with CADlink has led to the development of features and functionality in ProfileLab that are specifically suited to Tekcel CNC Routers. ProfileLab is easy to use and feature rich enabling you to get up and running immediately.
